Siklu EtherHaul 8010 - Teardown and Firmware Decryption
Overview
In this post I wanted to dig into the methodology I used to understand how a vendor (Siklu) encrypts their firmware images, and from that hopefully extract the keys and reverse the process to enable easier analysis of firmware files.
Having physical access to a device you are attempting to analyze makes the process much easier, in the current situation without a physical device we would be stuck with an encrypted firmware file. Luckily in this instance I was able to physically obtain a piece of old hardware, and crack it open to have look at what we are dealing with.
Physical Teardown

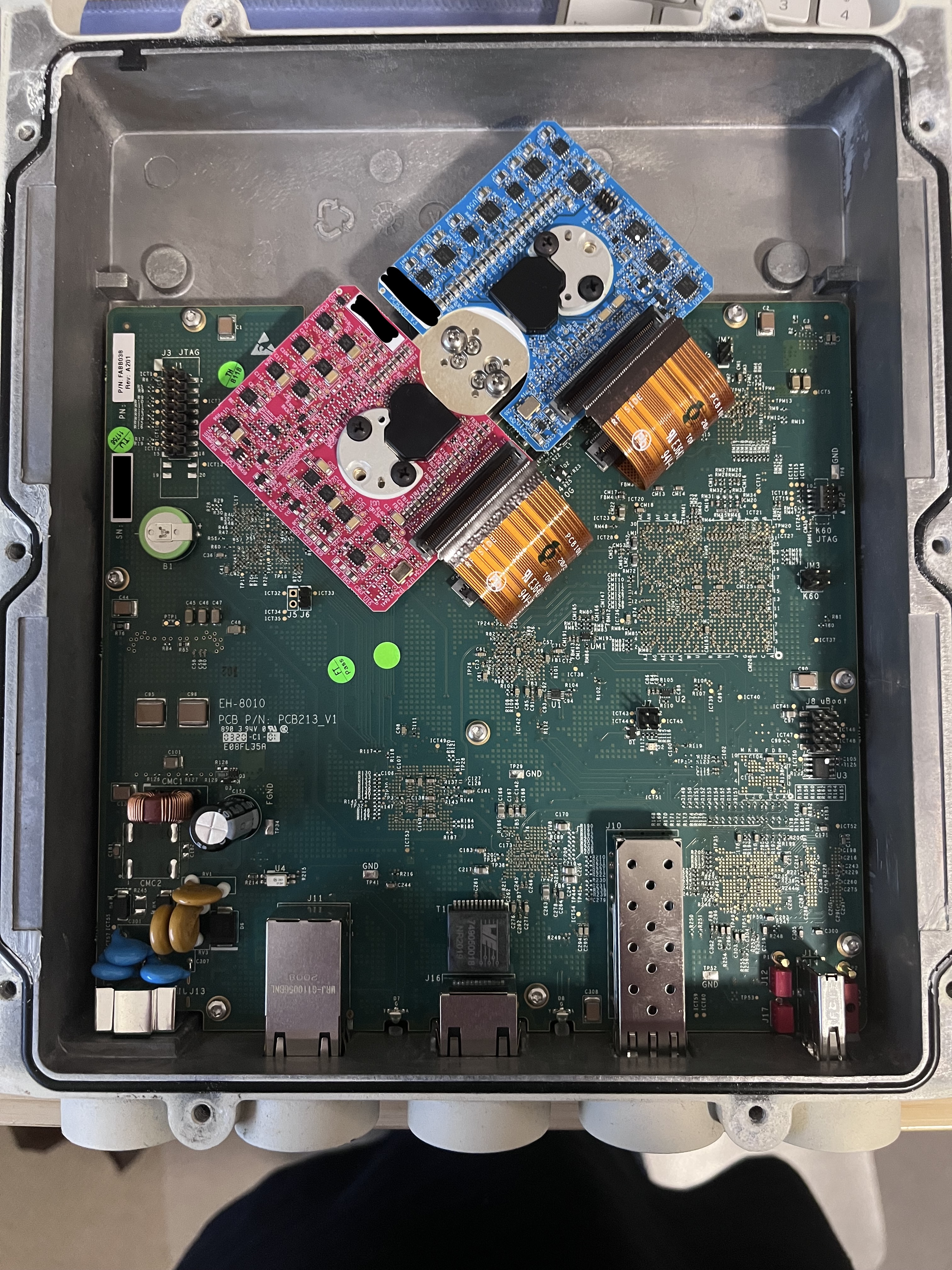

Removing the casing reveals a main PCB with 2x smaller PCBs housing the 70/80Ghz radios for vertical and horizontal, to protect my self whilst working with the device on the desk I carefully disconnected the ribbon cables to prevent any potentially dangerous RF being generated.
Reviewing the PCB we can see many header pins pre-soldered ready to go, some labelled JTAG which may be useful, however before we look at those we should look to see if there is an UART pins.
UART pins are generally clustered in groups of 4x pins (TX/RX/VCC/GND) or sometimes 3x pins (TX/RX/GND) using this logic we can identify two potential headers J7 and JM3
Using a multimeter and logic analyzer I was able to confirm J7 is the UART header running on baud 115200, with the below pin out, now that we have UART lets dig into that next.
J7 - UART (3.3V)
GND | VCC
---------
RX | TX
UART
Attaching a UART/TTL to USB adapter to the identified header, we can power the device up and monitor the boot process. (full boot log available here)
Observing the boot process we are able to confirm this device utilizes U-Boot as its bootloader, with a Freescale i.MX6ULL ARMv6 CPU, and 512MiB of RAM as well as 128MiB of NAND storage.
U-Boot 2017.11-svn25732 (Feb 11 2019 - 19:40:50 +0200)
CPU: Freescale i.MX6ULL rev1.1 528 MHz (running at 396 MHz)
CPU: Industrial temperature grade (-40C to 105C) at 44C
Reset cause: POR
Model: Siklu TBD
Board: Siklu PCB19x
I2C: ready
DRAM: 512 MiB
NAND: 128 MiB
In: serial
Out: serial
Err: serial
Init SYSEEPROM Data...
SF: Detected gd25q16 with page size 256 Bytes, erase size 64 KiB, total 16 MiB
Erasing NAND...
Erasing at 0x0 -- 100% complete.
Writing to NAND... OK
Net: PHY reset timed out
FEC0
Hit any key to stop autoboot: 3
The NAND storage appears to be partitioned into 7 partitions, with two containing the firmware image (one likely being a backup/secondary firmware slot)
Creating 7 MTD partitions on "gpmi-nand":
0x000000000000-0x000000020000 : "env"
0x000000020000-0x000000040000 : "env2"
0x000000040000-0x000000060000 : "env_t"
0x000000060000-0x000002860000 : "uimage0"
0x000002860000-0x000005060000 : "uimage1"
0x000005060000-0x000006060000 : "conf"
0x000006060000-0x000008000000 : "log"
We can also identify the device is using a Linux based firmware, and once booted provides a login prompt
Starting kernel ...
Booting Linux on physical CPU 0x0
Linux version 4.9.11+ (edwardk@rene.siklu.local) (gcc version 7.2.1 20171011 (Linaro GCC 7.2-2017.11) ) #4 SMP PREEMPT Thu Jun 7 12:18:17 IDT 2018
...
sw login:
Shell access
Normally in this situation we would look at utilizing the unlocked U-Boot to adjust the boot process into single user mode and bypass the login prompt, however luckily (or unfortunately) it appears the device uses the same root user credentials that were discovered on the Siklu TG series devices.
After logging in as root we are able to dump some information regarding running processes and get a lay of the land.
running processes
# ps
PID USER COMMAND
1 root init
...
440 root /usr/sbin/dropbear -k -j -K 10 -I 0 -b /tmp/ssh_banner
464 root [kworker/u2:2]
506 root /usr/sbin/crond -c /etc/cron.d -L /dev/null
514 root {cli_prio_cntrl.} /bin/sh /home/sw/bin/cli_prio_cntrl.sh
525 root /home/sw/bin/watchdogd
550 root /home/sw/bin/bspd -i
558 root /home/sw/bin/npud
566 root /home/sw/bin/swupgrd
574 root /home/sw/bin/modemd
588 root /home/sw/bin/ctrl_txd
596 root /home/sw/bin/oamd
604 root /home/sw/bin/rfpiped
711 root /home/sw/bin/cad
728 root /home/sw/bin/mini_httpd -C /etc/httpd.conf
742 root /usr/sbin/snmpd -c /tmp/snmpd.conf
757 root [kworker/u2:3]
762 root [kworker/0:2]
767 root -sh
784 root /usr/sbin/rsyslogd
797 root ps
listening network sockets
# netstat -tunel
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:8081 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:8082 0.0.0.0:* LISTEN
tcp 0 0 :::22 :::* LISTEN
tcp 0 0 :::443 :::* LISTEN
tcp 0 0 :::555 :::* LISTEN
tcp 0 0 :::80 :::* LISTEN
udp 0 0 0.0.0.0:161 0.0.0.0:*
udp 0 0 0.0.0.0:68 0.0.0.0:*
udp 0 0 :::161 :::*
Upgrade process
With shell access we can also monitor what processes run during the upgrade process and hopefully find what might handle the decryption stage.
After “downloading” (uploading) a new firmware to the device via the web interface, we observe a process called swupgrd_decrypt start and spawn openssl to decrypt the image, of note is the -pass stdin argument.
As the key is being passed through to openssl via stdin we could substitute openssl with another binary/script which dumps stdin into a file.
1100 root swupgrd_decrypt /tmp/siklu-uimage-nxp-enc-10.7.3-18993-bab5784d52
1223 root sh -c openssl enc -in /tmp/siklu-uimage-nxp-enc-10.7.3-18993-bab5784d52 -out /tmp/logs/.decrypted -d -aes256 -pass stdin
1233 root openssl enc -in /tmp/siklu-uimage-nxp-enc-10.7.3-18993-bab5784d52 -out /tmp/logs/.decrypted -d -aes256 -pass stdin
1240 root /home/sw/bin/mini_httpd -C /etc/httpd.conf
Reviewing the PATH order we drop a fake openssl executable script into /home/sw/bin to intercept the stdin and save to a file
#!/bin/sh
cp /dev/stdin decrypt.bin
Whilst this did capture what appeared to be a 32 byte key, it would only work on the specific image we used to capture, capturing another image decryption key we observed the first 16 bytes were static and the second 16 bytes changed.
Digging into swupgrd_decrypt
Loading the binary into a de-compilation tool and searching for openssl we quickly identify the function that appears to be used for decryption.
In this function we can observe two fwrite calls to the openssl process handle, both being 16 bytes long.
However we still are unsure where those last 16 bytes come from (ignoring my comments) so lets dig into the calling function main
00011cc0 int32_t decrypt_file(int32_t arg1, char* enc_file)
00011cde void openssl_cmd
00011cde snprintf(&openssl_cmd, 0x100, "openssl enc -in %s -out %s -d -a…", enc_file, "/tmp/logs/.decrypted")
00011ce8 FILE* openssl_stdin = popen(&openssl_cmd, &data_129e4) // write
...
00011cf0 if (openssl_stdin == 0) // Check stdin is ready
...
00011cfc else // Write 16bytes from master_key to OpenSSL stdin
00011cfc fwrite(&master_key, 16, 1, openssl_stdin)
00011d08 // Write image key to OpenSSL stdin, last 48 bytes of image is
00011d08 // passed to arg1, with key starting at 16 bytes, and key
00011d08 // being 16 bytes long
00011d08 fwrite(arg1 + 16, 16, 1, openssl_stdin)
In the main function we can observe the process reading the last 48 bytes of the image, using this to check a signature and validate the CRC32 of the image.
After this is done is removes these 48 bytes from the file, before passing them into the decrypt_file function, which we can see extracts 16 bytes from 16 bytes into the 48 bytes.
0001140c int32_t main(int32_t argc, char** argv, char** envp)
00011424 void encFile
00011424 memset(&encFile, 0, 0xc0)
0001142a int32_t i_11
0001142a char* var_318
0001142a int32_t var_300
0001142a int32_t var_2f4
0001142a void* var_20c
0001142a int32_t var_204
0001142a if (argc == 2)
00011434 strncpy(&encFile, argv[1], 0xbf)
0001143c int32_t fileHandle = open(&encFile, argc)
00011442 char const* const var_328
00011442 if (fileHandle s< 0)
00011534 char const* const* var_2f8_1 = &var_328
00011536 var_318 = "cannot open {}"
00011536 int32_t var_314_1 = 0xe
0001153e var_300 = 12
0001154c int32_t var_358_2 = var_300
0001154c int32_t var_354_3 = 0
00011558 var_328 = &encFile
00011558 int32_t var_324_2 = 0
0001155c fmt::v8::vformat()
00011562 int32_t i_9 = 0
00011564 char const* const r1_9 = "/home/jenkins/agent/workspace/ho…"
00011570 int32_t i
00011570 do
00011566 r1_9 = &r1_9[1]
0001156a i = i_9
0001156c i_9 = i_9 + 1
0001156c while (zx.d(*r1_9) != 0)
00011574 if (i u> 1)
0001157a void* r3_5 = &(*"/home/jenkins/agent/workspace/ho…")[i]
00011582 do
00011584 uint32_t r1_10 = zx.d(*r3_5)
00011584 r3_5 = r3_5 - 1
0001158a if (r1_10 == 0x2f)
0001158a break
0001157e i = i - 1
0001157e while (i != 1)
000115a6 syslog(0xb, "[%s:%d %s] %s", &(*"home/jenkins/agent/workspace/hos…")[i], 0x9b, "get_decrypted_image", var_20c, var_2f8_1, var_2f4)
000115a6 goto label_115aa
0001144e lseek(fileHandle, -48)
00011458 // Read footer which contains encryption key
00011458 ssize_t r0_4 = read(fileHandle, &var_300, 48)
0001145e int32_t var_2d4
0001145e int32_t r0_15
0001145e char* var_330
0001145e int32_t* var_310
0001145e int32_t var_30c
0001145e if (r0_4 == 0x30)
0001146c if (var_300 == 0x6e47d950)
000115c8 r0_15 = crc32(0, &var_300, 44)
000115d2 if (r0_15 != (var_2d4 u>> 0x18 | (var_2d4 u>> 0x10 & 0xff) | (var_2d4 u>> 8 & 0xff) | (var_2d4 & 0xff)))
🚫000115d4 unimplemented {vmov.I32 d16, #0}
000115e2 var_310 = &var_330
000115ec var_328 = "invalid enc footer"
🚫000115f4 unimplemented {vstr d16, [r7, #0x30]}
000115f8 int32_t* r2_10 = var_310
000115fa char* var_358_3 = var_318
000115fa int32_t var_314
000115fa int32_t var_354_5 = var_314
🚫00011604 unimplemented {vstr d16, [r7, #0x18]}
00011608 fmt::v8::vformat()
0001160e int32_t i_6 = 0
00011610 char const* const r1_16 = "/home/jenkins/agent/workspace/ho…"
0001161c int32_t i_1
0001161c do
00011612 r1_16 = &r1_16[1]
00011616 i_1 = i_6
00011618 i_6 = i_6 + 1
00011618 while (zx.d(*r1_16) != 0)
0001162e for (; i_1 u> 1; i_1 = i_1 - 1)
00011628 if (zx.d((*"/home/jenkins/agent/workspace/ho…")[i_1]) == 0x2f)
00011628 break
0001164a syslog(0xb, "[%s:%d %s] %s", &(*"home/jenkins/agent/workspace/hos…")[i_1], 0x7d, "get_decrypted_image", var_20c, r2_10, var_30c)
00011656 else // Trim last 48 bytes, and extract key
00011656 int32_t var_2e0
00011656 ftruncate(fileHandle, var_2e0 u>> 24 | (var_2e0 u>> 16 & 255) | (var_2e0 u>> 8 & 255) | (var_2e0 & 255))
00011664 if (decrypt_file(&var_300, &encFile) != 1)
Wrapping it up
A golden rule in IT security is once someone has physical access, all bets are off, and this is a clear case of that.
With physical access we were able to obtain a shell to the underlying OS of the device, and from there monitor the decryption process and obtain the binaries responsible.
Whilst the static decryption key cannot be disclosed, below is an example python script to perform a decryption of the firmware.
- Extract image key from file (seek to last 32 bytes of image, read 16 bytes)
- Duplicate image file, and trim last 48 bytes of image
- Start
opensslprocess and pass in master key + image key
Usage
Simple run the python3 script passing the encrypted image file as the first argument
python3 decrypt_firmware.py <image>
python3 decrypt_firmware.py siklu-uimage-nxp-enc-10_6_2-18707-ea552dc00b.zip
Processing file: siklu-uimage-nxp-enc-10_6_2-18707-ea552dc00b.zip
*** WARNING : deprecated key derivation used.
Using -iter or -pbkdf2 would be better.
Cleaning up truncated file siklu-uimage-nxp-enc-10_6_2-18707-ea552dc00b.zip_truncated
Decrypted file saved to siklu-uimage-nxp-enc-10_6_2-18707-ea552dc00b.zip_decrypted
Code
import subprocess
import sys, os
import binascii
# Check if there are enough arguments
if len(sys.argv) > 1:
input_file_path = sys.argv[1]
print("Processing file:", input_file_path)
else:
print("No file specified.")
sys.exit(1)
# Define file paths for truncated encrypted file, and where to save decrypted version
truncated_file_path = input_file_path + '_truncated'
output_file_path = input_file_path + '_decrypted'
# Common base encryption key used by Siklu
base_key = "<REDACTED>"
# Function to remove the last 48 bytes from file
def remove_last_48_bytes(in_file, out_file):
with open(in_file, 'rb') as f:
content = f.read()
new_content = content[:-48] # Slice the content, excluding the last 48 bytes
with open(out_file, 'wb') as f:
f.write(new_content)
# Function to exctract image encryption key which is stored in the last 48 bytes of the file
def extract_key(in_file):
with open(in_file, 'rb') as f:
# Seek to the position 10 bytes before the end of the file
f.seek(-32, 2) # 2 means to seek relative to the end of the file
# Read the last 16 bytes
key_bytes = f.read(16)
return binascii.hexlify(key_bytes).decode('utf-8')
# Build full decryption key from base_key and key from input file
decrypt_key = bytearray.fromhex( base_key + extract_key(input_file_path))
# Strip extra data from input file, produce valid OpenSSL encrypted file
remove_last_48_bytes(input_file_path, truncated_file_path)
# Execute OpenSSL and setup pipes to input key
openssl = subprocess.Popen(
['openssl', 'enc', '-d', '-aes256', '-pass', 'stdin', '-md', 'md5', '-in', truncated_file_path, '-out', output_file_path],
stdin=subprocess.PIPE,
stdout=subprocess.PIPE,
stderr=subprocess.PIPE
)
# Pass the byte data (password) to the openssl process via stdin
stdout, stderr = openssl.communicate(input=decrypt_key)
# Optionally, print the stdout and stderr
print(stdout.decode()) # Decrypted output
print(stderr.decode()) # Any error messages
print(f'Cleaning up truncated file {truncated_file_path}')
os.remove(truncated_file_path)
print(f'Decrypted file saved to {output_file_path}')
